Purple Line Kojack Twin Axle Jack

Kojack Hydraulic Caravan Jack and Levelling System - Twin Axle (KJ4000T)

Elevate your caravanning experience with the Kojack Hydraulic Caravan Jack and Levelling System (KJ4000T), designed for twin axle caravans. Engineered by Purple Line’s UK innovation centre, this 3-tier hydraulic bottle jack ensures effortless lifting and levelling without drilling your chassis, preserving your warranty. Compatible with 99% of caravans, it bolts into pre-existing holes on most AL-KO and BPW chassis, offering a safe working load of 2000kg and TUV CE accreditation. Whether for quick wheel changes or achieving the perfect pitch, the Kojack delivers reliability and ease, complete with spirit-level brackets for precision.

Specifications

• Product Code: KJ4000T

• Total Weight: 8.9 kg

• Jack Weight: 4.7 kg

• Jack Compressed Height: 170 mm

• Jack Extended Height: 390 mm

• Jack Width: 140 mm

• Jack Depth: 130 mm

• Bolt Size: 19 mm M12

• L-Bracket Weight: 0.7 kg

• L-Bracket Dimensions: 155 mm (H) x 95 mm (W) x 60 mm (D)

• V-Bracket Weight: 1.4 kg

• V-Bracket Dimensions: 150 mm (H) x 110 mm (W) x 180 mm (D)

• Safe Working Load: 2000 kg

• Total Vehicle Weight: 4000 kg

• Hole Spacing (From Centre): 55 mm

Features

• Universal Compatibility: Fits 99% of twin axle caravans, bolting into standard AL-KO and BPW chassis holes.

• No Drilling Required: Custom brackets preserve your chassis warranty.

• 3-Tier Hydraulic Jack: Smooth, powerful lifting with a 2000 kg safe working load.

• Integrated Spirit Levels: L-brackets include spirit levels for precise levelling.

• TUV CE Accredited: Certified for safety and reliability.

• Versatile Use: Ideal for wheel changes, maintenance, and levelling on uneven ground.

• Complete Kit: Includes 3-tier hydraulic jack, 2 L-brackets, 2 V-brackets, and all fittings.

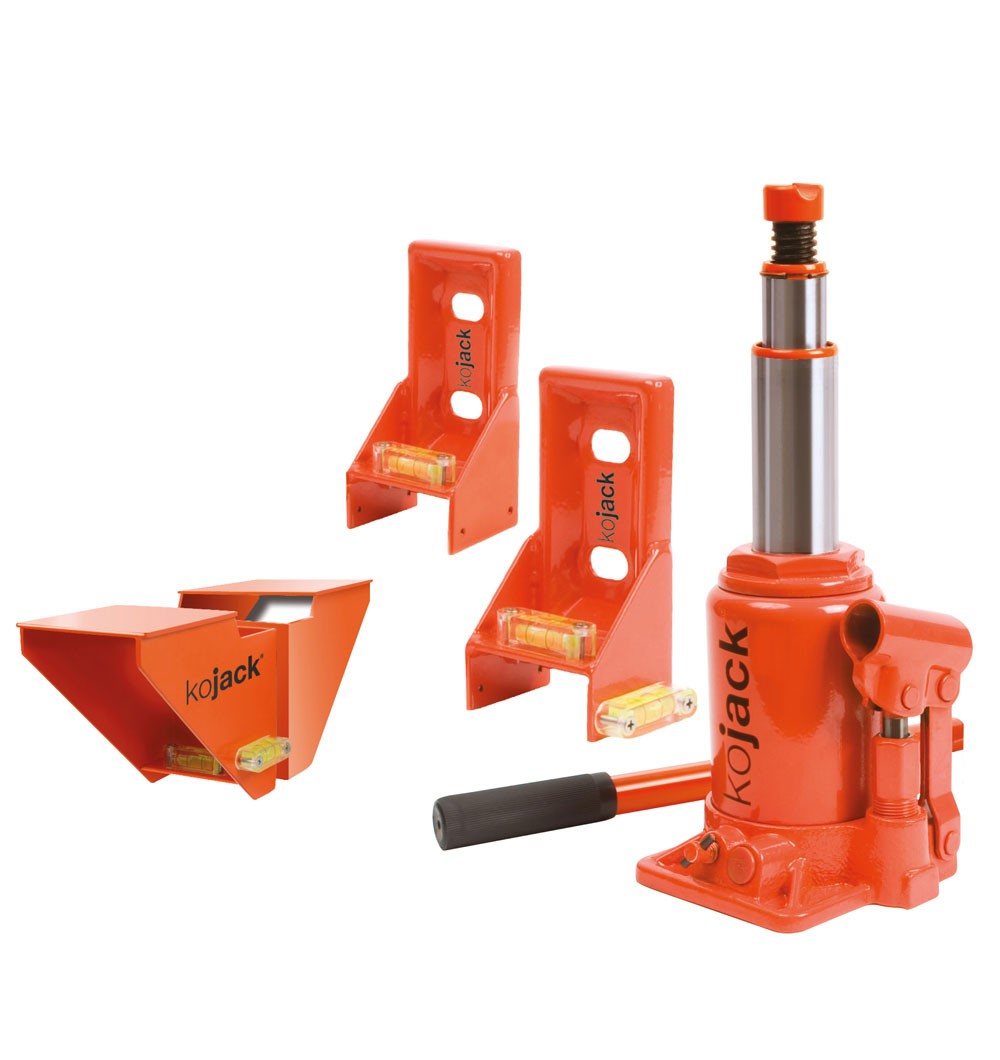

Kit Contents

• 3-tier hydraulic bottle jack

• 2 L-brackets with integral spirit levels

• 2 V-brackets for twin axle support

• All necessary fittings and fixings

Important: Not suitable for caravans with all-wheel-drive motor movers, as brackets may lack attachment points. Use secure blocks after lifting for safety; do not work under the caravan supported only by the jack.

Purchase the Kojack Hydraulic Caravan Jack (KJ4000T) today for effortless lifting and perfect caravan pitching!
